Spares for ESP

Unicon is Equipped with Design Team, Drawings and Manufacturing facilities to supply Spares for all make of ESPs. We are having a vast pool expertise in supply of spares for ESPs more than 30 years.

Engineered for longevity

High performing and long lasting Spares for ESP with a lower cost modules

Cost Effectiveness

Unicon is having vast experience in supply of spares for ESPs which reduces various cost elements and same will be transferred to client.

Spares for all make of ESPs

With our vast experience in Supply of Spares for ESP, we developed a system to supply spares for all make of ESPs.

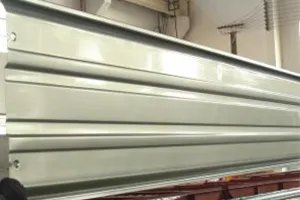

Collecting Electrodes

With our Re-engineering background, we enjoy an enviable strength when supply of spares is concerned. This further enables us to meet short delivery requirements with ease. Customer has been the focus of all our activities and Customer Satisfaction has been the driving force for our performance. UNICON has been Supplying ESP components for the past 25 years. The components include Collecting Electrodes, Discharge Electrodes/Emitting, Electrodes, Hammers, Insulators, etc. Collecting Electrodes are manufactured by cold roll forming and then finished by carrying out various post forming operations. We are having our own facilities for manufacturing of the collecting electrodes. UNICON is supplying ZT-24, SIGMA TYPE, CSV TYPE Collecting Electrodes regularly. Apart from the above, we are having our own designed Collecting Electrodes.

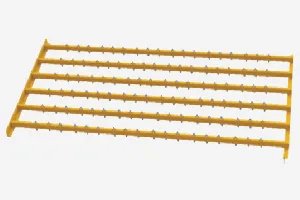

Emitting / Discharge Electrodes

With our Re-engineering background, we enjoy an enviable strength when supply of spares in concerned. This further enables us to meet short delivery requirements with ease. Customer has been the focus of all our activities and Customer Satisfaction has been the driving force for our performance. UNICON has been Supplying ESP components for the past 20 years. The components include Collecting Electrodes, Discharge Electrodes / Emitting Electrodes, Hammers, Insulators, etc. Different type of Emitting Electrodes are manufactured by using different formation processes. UNICON can supply you with the material, style & size to fit the requirements of your existing precipitation system, or re-engineer to improve performance in both wire and rigid electrode designs. Pipe and Spike.: Pipe & spike discharge electrodes are formed from 2″ diameter tubing. Each discharge electrode is attached to the high voltage support frame by a single high strength bolted connection. The individual discharge electrodes are bolted at the bottom through a lower steadying frame. The entire assembly is supported from the roof of the precipitator through a welded high voltage structure. To facilitate ease of construction, each electrode is allowed to hang freely from its support channel and the entire assembly is then aligned to the collecting surfaces prior to tightening the bolted connection. The electrode is virtually maintenance free and is resilient to operational upsets.

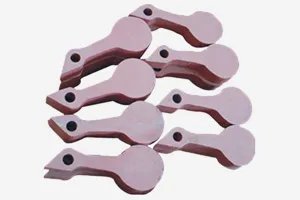

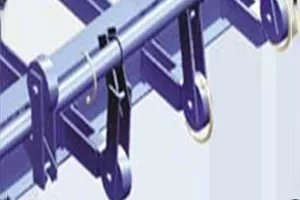

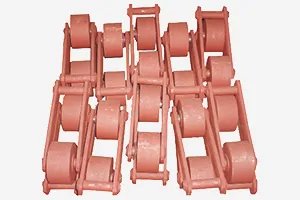

Hammers / Outer Arm

UNICON Regularly supplies Tumbling Hammers and Inner arms for Collecting Rapping System, Emitting Rapping System and GD Rapping System for all makes of Electrostatic Precipitators. Tumbling Hammers are Fabricated or Forged as per customer requirement. Material of Construction will be selected based on application and customer preference like Mild Steel, EN24, etc,.

Inner Arm

UNICON Regularly supplies Inner Arm for Tumbling Hammers of Collecting Rapping System, Emitting Rapping System and GD Rapping System for all makes of Electrostatic Precipitators.

Inner Arms are Fabricated or Forged as per customer requirement.

Material of Construction will be selected based on application and customer preference like Mild Steel, EN24, etc,.

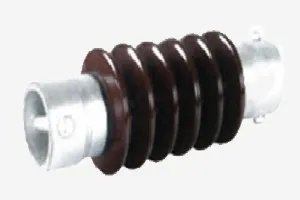

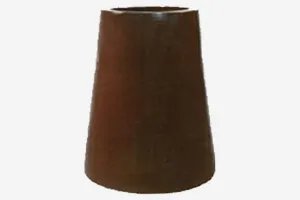

Insulators

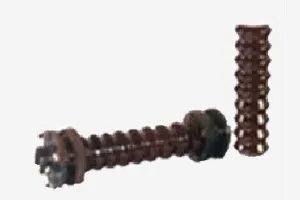

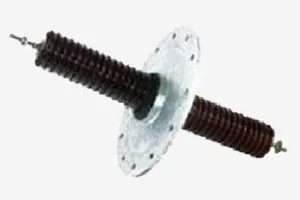

UNICON Regularly supplies the following Porcelain Insulators for all makes of Electrostatic Precipitators. 1. Cylindrical Support Insulators 2. Conical Support Insulators 3. Shaft Insulators 4. Pin Insulators 5. Wall Through Bushing Insulator 6. Bus Duct Insulators, etc,.

Heaters

UNICON Regularly supplies the following Heaters, RTDs, etc, for all makes of Electrostatic Precipitators.

1. Hopper Heaters
2. Support Insulator Heaters
3. Shaft Insulator Heaters

All the heaters will be of tubular type with MOC of tube as SS 316 or SS 304 according to the customer requirement.

Heater Junction Box will be of Fabricated type or Cast Iron as per requirement.

Plain Bearing

UNICON Regularly supplies Plain Bearings / Rapping Bearings for all makes of Electrostatic Precipitators. Plain bearings will be of Cast Iron as per required grade. The same will be supplied with required fasteners as per the order.

Suspension

UNICON Regularly Designing, Manufacturing and Supplying Collecting Suspension & Emitting Suspension in whole or part for all make of ESPs. Normally both Collecting Suspension and Emitting Suspensions are fabricated with Mild Steel. Collecting Suspension is manufactured with Angles & Collecting Hooks. Emitting Suspension is manufactured with square tubes, rectangular tubes and Emitting Hook.

Need ESP Spares for your factory, industry or plant? Our installation solutions extends around the world

Enquire Now

Please find below details of Some Spares for ESPs we are regularly supplying

Collecting Electrodes	Support Insulator
Spiral Emitting Electrodes	Shaft Insulator
Pipe & Spike type Discharge Electrodes	Support Insulator Heater
Rigid type Discharge Electrodes	Shaft Insulator Heater
Collecting Rapping Hammers	Hopper Heater
Emitting Rapping Hammers	Rapping Shafts
GD Rapping Hammers	Collecting Suspension
Inner Arm	Emitting Suspension
Outer Arm	Rotary Airlock Valves
Plain Bearing	Slide Gates
