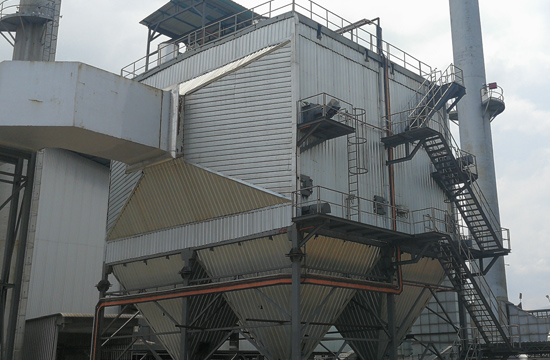

Electrostatic Precipitators (ESP)

UNICON has a credential record of success in designing, engineering, fabricating, supplying, erection and commissioning of electrostatic precipitator (ESP).

Electrostatic Precipitators (ESP)

UNICON has a credential record of success in designing, engineering, fabricating, supplying, erection and commissioning of electrostatic precipitator (ESP).

Electrostatic Precipitators (ESP)

UNICON has a credential record of success in designing, engineering, fabricating, supplying, erection and commissioning of electrostatic precipitator (ESP).

Electrostatic Precipitators (ESP)

UNICON has a credential record of success in designing, engineering, fabricating, supplying, erection and commissioning of electrostatic precipitator (ESP).

Electrostatic Precipitators (ESP)

UNICON has a credential record of success in designing, engineering, fabricating, supplying, erection and commissioning of electrostatic precipitator (ESP).

Electrostatic Precipitators (ESP)

UNICON has a credential record of success in designing, engineering, fabricating, supplying, erection and commissioning of electrostatic precipitator (ESP).

Electrostatic Precipitators (ESP)

UNICON has a credential record of success in designing, engineering, fabricating, supplying, erection and commissioning of electrostatic precipitator (ESP).

Lower emission

Designed to reduce the emission rate to as below as 10 mg/Nm3 emissions.

Easy maintenance

The electrode system is so designed that approach to any level is possible for inspection and maintenance.

Engineered for longevtiy

High performing and long lasting electrostatic precipitator with a lower cost modules

Installing ESP's for your factory, industry or plant? Our installation solutions extends around the world

Product Specifications

ParameterData
ApplicationsPower Plants - Boilers and Heaters, *Other Industries
Capacity (Power Plant MW)10 to 600
Gas Temperatures (°C)70 - 400
Gas Flow Rate (m3/s)5 - 1500
ESP inlet dust loading (g/Nm3)0.2 - 200 g/Nm3
Guaranteed ESP outlet emission (mg/Nm3)10 - 200 (suitable design for ESP as pre-collector), filterable PM only
PM Collection EfficiencyUp to 99.95%
AvailabilityUp to 98%
*Other Industry — Cement: Kiln, Mills, Cooler; Iron & Steel: Sintering, Pelletization, Sponge Iron Kiln, Cast House, Stock House; Biomass fired boilers; Waste to Energy plants; Pulp & Paper: Recovery Boiler, Lime Kiln; Non-Ferrous- Smelter, Converter; Oil & Gas: FCCU etc.

Installing ESP's for your factory, industry or plant? Our installation solutions extends around the world

Other Special features of our ESP(s)

  • Proven Particulate Matter Removal <10mg/Nm3
  • High Availability
  • Low Maintenance
  • Reduced breakdown
  • Most Economical Design
  • Lower Operating Cost
  • Optimum Performance under Varying Load Conditions

Our ESP design will incorporate CFD for even distribution of gas inside ESP to ensure the complete utilization of collecting area

Spiral/Rigid Electrodes with Tumbling Rapping System

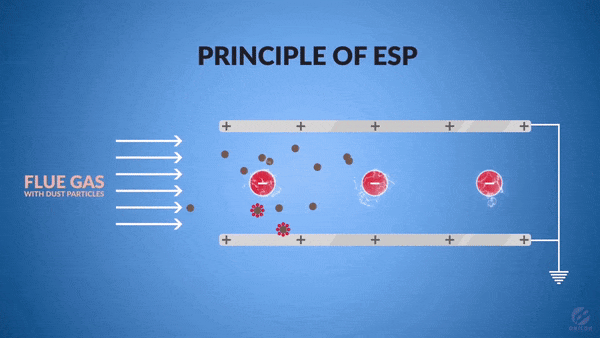

We offer Spiral/Rigid Emitting Electrodes to ensure the proper Corona generation inside the ESP for better collection efficiency.

Individual Collecting electrodes are suspended from top to form a curtain. This also ensures that the Collecting system is not bulky and thus ensures good rapping characteristics.

Unicon have supplied more than 250 numbers of ESP for Boiler. By the years, Unicon had accured expertise in installing ESP for Boiler which are using fuels like Coal, Bagasse, Spent wash, Slop, Pet Cock, Rice Husk, Rice Straw, Wood Chips, Saw Dust, etc,.

Other Special features of our ESP(s)

  • Proven Particulate Matter Removal <10mg/Nm3
  • High Availability
  • Low Maintenance
  • Reduced breakdown
  • Most Economical Design
  • Lower Operating Cost
  • Optimum Performance under Varying Load Conditions
Our ESP design will incorporate CFD for even distribution of gas inside ESP to ensure the complete utilization of collecting area

Spiral/Rigid Electrodes with Tumbling Rapping System

We offer Spiral/Rigid Emitting Electrodes to ensure the proper Corona generation inside the ESP for better collection efficiency.

Individual Collecting electrodes are suspended from top to form a curtain. This also ensures that the Collecting system is not bulky and thus ensures good rapping characteristics.
