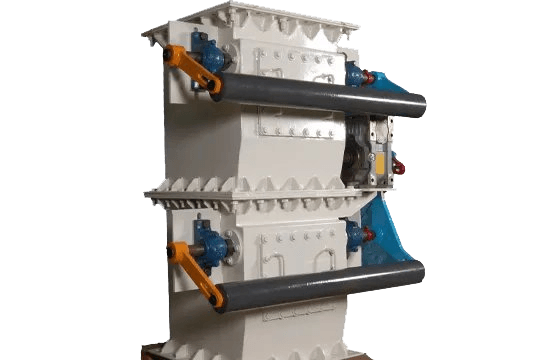

Double Cone Valve

Double Cone Valve are having prominent place in the market for controlled feeding as well as airlock sealing between collection chamber and conveying equipment.

Product Specifications

Sturdy Construction

Unicon Double Cone Valves are designed for high pressure applications also.

High Performance

Designed for very less friction and transmission losses and so Unicon Double Cone Valves are providing high performance

Minimal Maintenance

Components are specially designed for very less wear and tear and so minimal maintenance.

Product Specifications

DescriptionData
ApplicationCement, Clinker, Gypsum, Fly Ash, Sinter dust, Sponge Iron, Coal Dust, Etc,.
Capacity1 TPH to 100 TPH
Temperature350 Deg C Max
Opening SizeUpto 500 mm cone
Flange TypeSquareor Rectangle
Material of construction (Casing)Mild Steel / Stainless Steel
Material of construction (Cone)Ni Hard / Cast Steel / Cast Iron as per requirement
ConstructionFabricated
Abrasion resistant liningSail Hard, Hardox or Stainless Steel as per requirement
Drive typeGeared Motor through cam

Installing Double Cone Valve in your factory, industry or plant? Our installation solutions extends around the world

Special Features of Unicon Double Cone Valves

Unicon Products are distributed worldwide. Besides a extensive range of standard components, we supply international standards sanitary versions and explosions proof models. We have been designing and manufacturing Double Cone Valves for bulk solid industry for more than 30 years. Offering tailor made solutions for cement, coal, power plant, Paper, Sugar, Chemical, Steel, etc.,

Our Double cone valves are designed specifically for long life in handling. The wide selection of available actuators and control component allow easy integration with any degree of automation. A choice of mild steel Hardox 400, Hardox 500 & stainless steel materials gives the option of selection material of construction to suit your particular needs.

  • Robust design for continual operation
  • Sizes can be supplied according to client requirement.
  • Actuation will be manual, motorized, pneumatic.
  • Rectangular and Square inlet and outlets are available.
  • 100% sealing at high temperature can be provided for special requirements.
